Offsite Operator

This page is for the offsite operator, who is watching the livestream remotely. The offsite operator must have a stable internet connection.

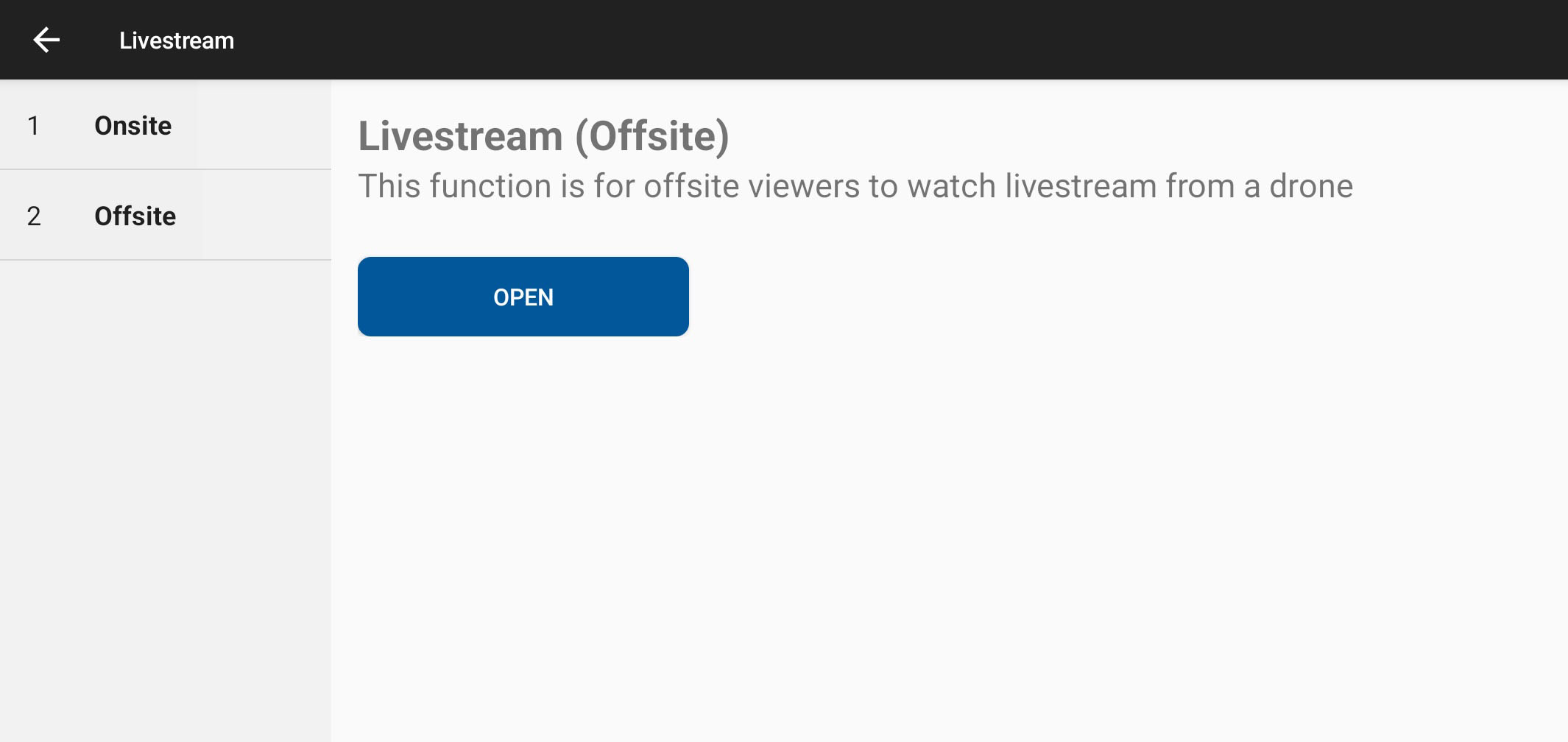

Flight Menu​

Please select 'Offsite' and click open button to go to the flight page for onsite operator.

Flight Menu

User Interface​

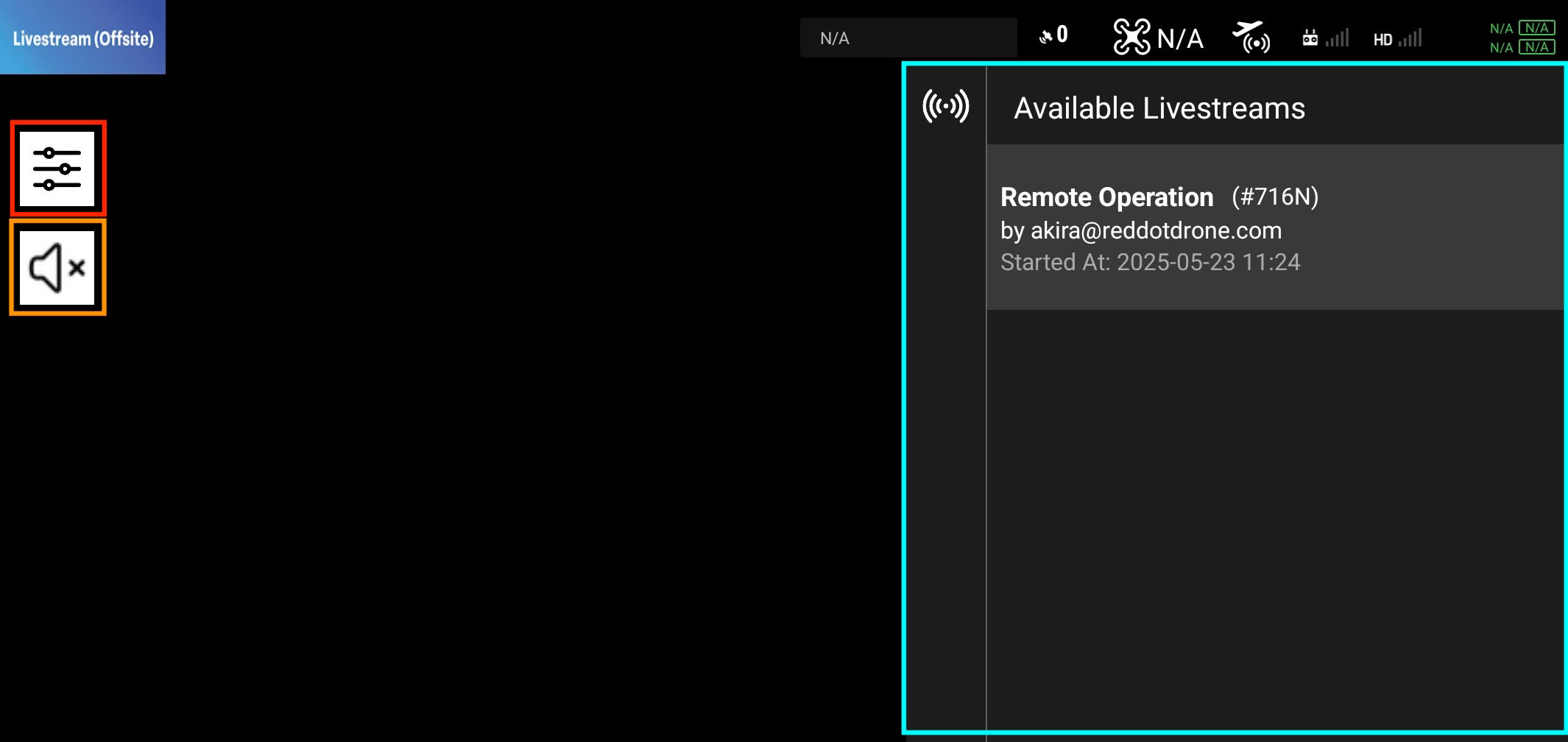

Offsite page 1

  • Panel Button (red-color-bordered): Panel Button is the button to open/close the panel on the right side of the screen. Please close if you need more space for the livestreaming video.

  • Speaker Button (orange-color-bordered): mute and unmute the speaker to talk with the remote pilot.

  • Command Panel (light-blue-color-bordered): the panel is to set up livestream session.

Hiding the Command Panel​

you are able to hide the command panel by clicking the panel button (red-color-bordered) on the top left corner of the screen.

Join remote session​

Offsite page 1

Please tap one of "Remote Operation" item on the list of Avaiable Remote Session to join the remote session.

Remote session status​

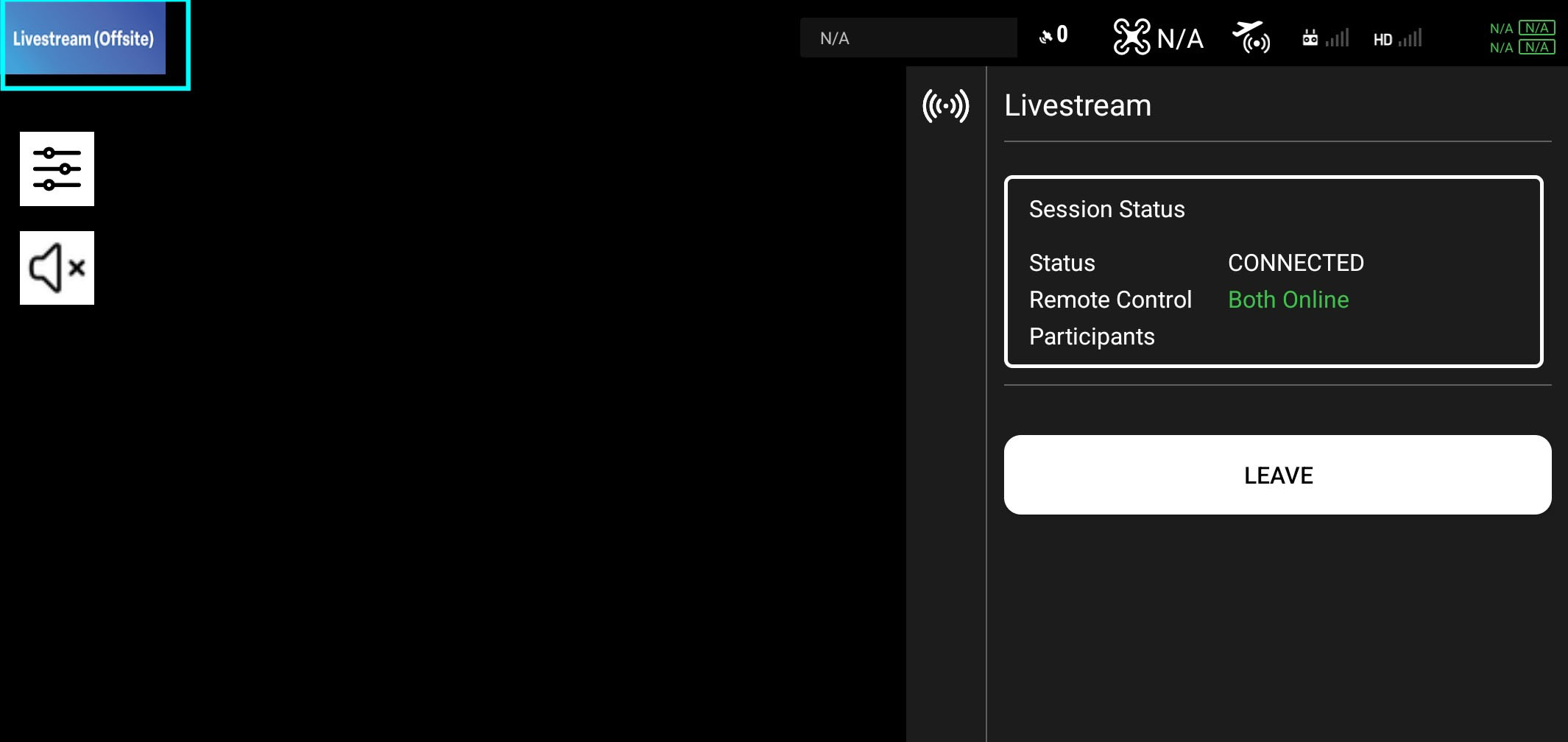

Once the remote session is started, you will see the following screen on the right. The remote pilot will be able to see the video stream from the drone's camera. Offsite page 2

Buttons​

  • Leave Button: This is the button to leaev the remote session.

Close the page​

Once you click the logo image on top-left corner of the page, you will be redirected to the menu page. The remote session will be stopped automatically.

Offsite page 2
