Onsite Operator

This page is for the onsite operator, who is physically present at the drone's location. The onsite operator is responsible for ensuring the safety of the drone and its surroundings during the flight. The onsite operator must have a stable internet connection and a compatible remote controller connected to the drone.

Connecting the Remote Controller​

Please connect the remote controller to the drone and ensure that the drone is powered on. The remote controller must be connected to the internet for the Remode app to function properly.

Note: you will see livestreaming from the drone camera on the page. but the instruction images on the page are not showing the livestreaming video.

If you don't see video feed on the page, please check the following page: Trouble Shooting

Flight Menu​

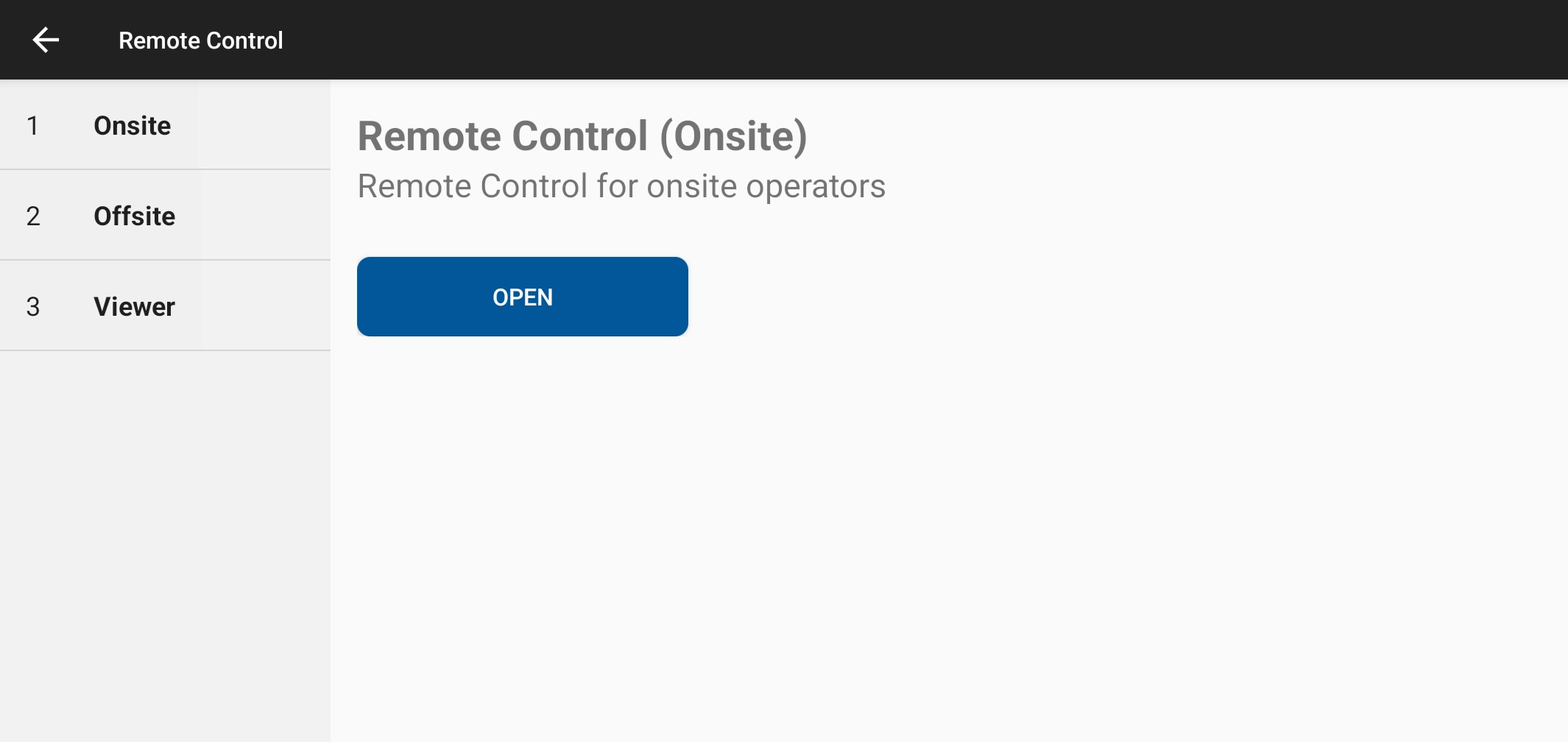

Please select 'Onsite' and click open button to go to the flight page for onsite operator.

Flight Menu

User Interface​

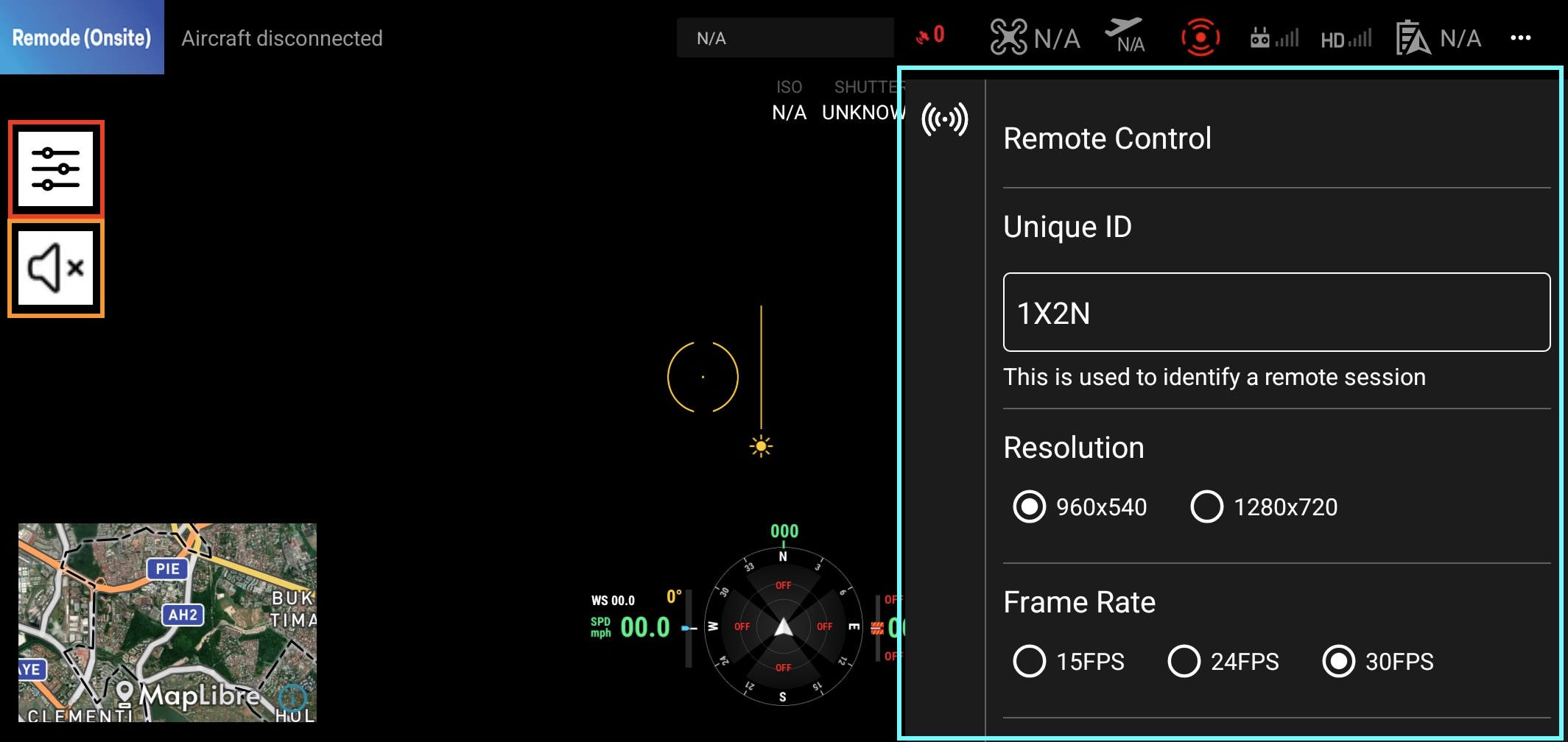

Onsite page 1

  • Panel Button (red-color-bordered): Panel Button is the button to open/close the panel on the right side of the screen. Please close if you need more space for the livestreaming video.

  • Speaker Button (orange-color-bordered): mute and unmute the speaker to talk with the remote pilot.

  • Command Panel (light-blue-color-bordered): the panel is to set up the remote control.

Hiding the Command Panel​

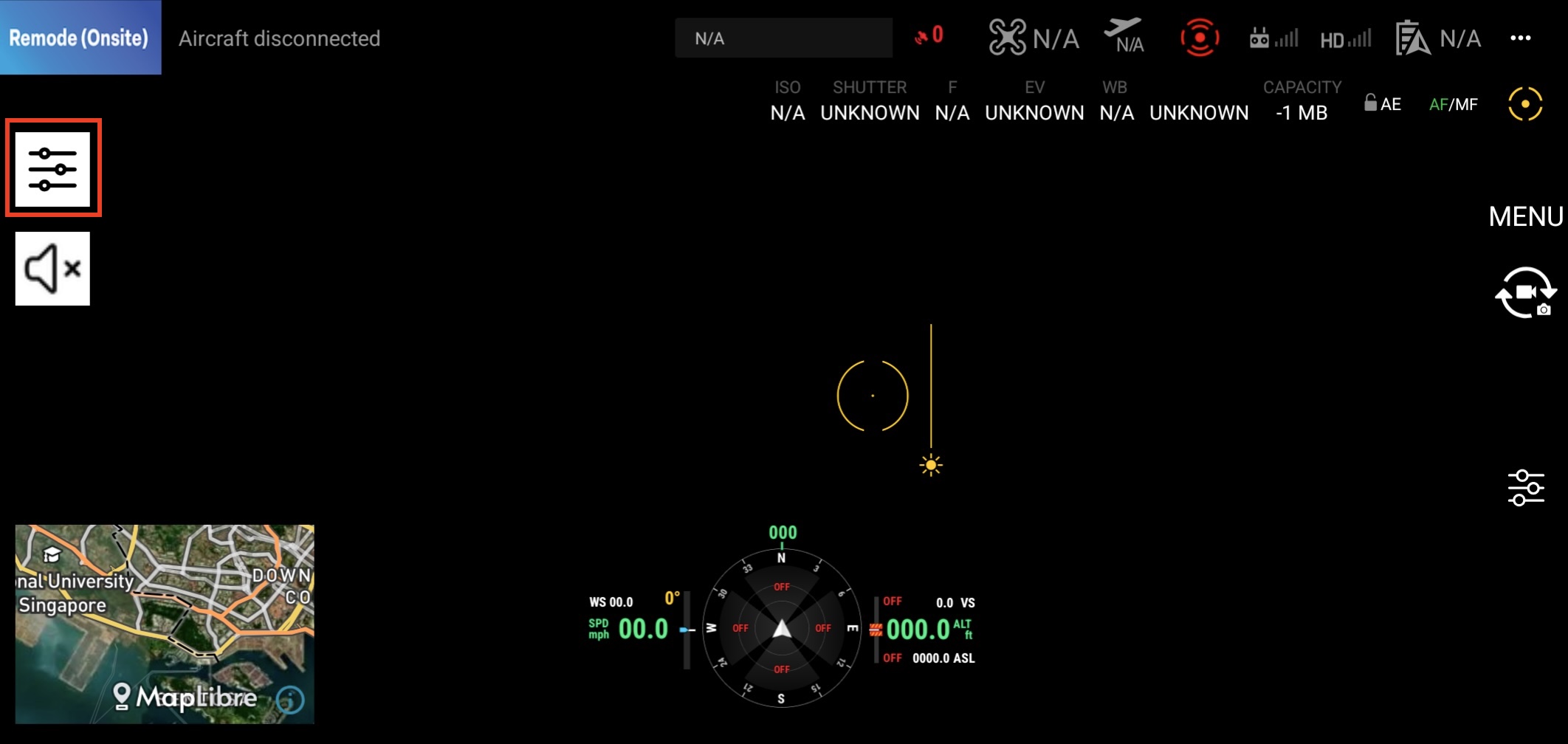

Onsite page 3 you are able to hide the command panel by clicking the panel button (red-color-bordered) on the top left corner of the screen.

Start remote session​

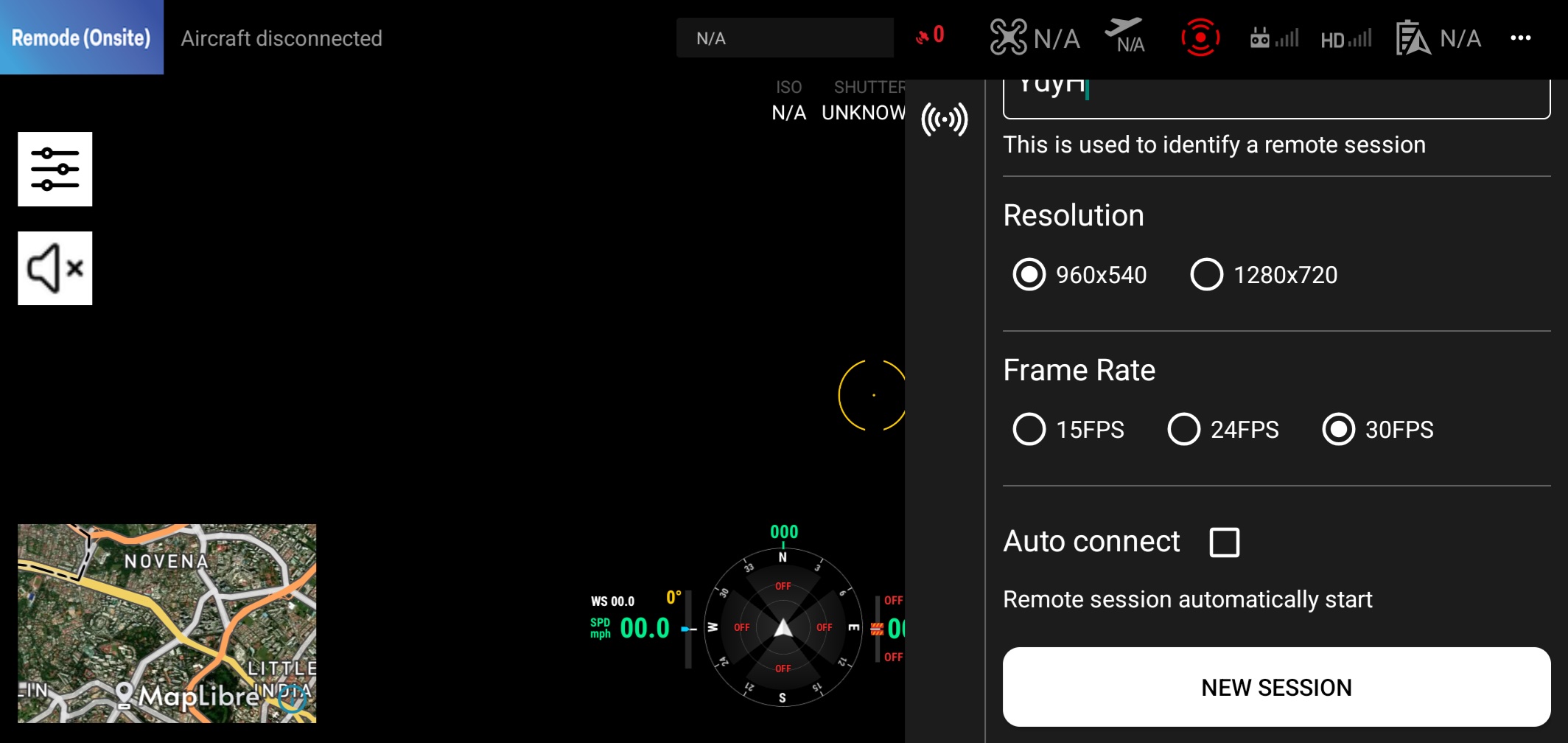

Onsite page 2

Please click the "New Session" button to start the remote session with the following configuration.

Configuration​

  • Unique ID: Randomly generated ID for the remote session to identify the remote session. It's not necessary to change this ID.
  • Resolutiin: The resolution of the video stream. You can choose between 960p and 720p. (1080p will be supported soon)
  • FPS: The frame rate of the video stream. You can choose 15fps,24fps and 30fps.
  • Auto Connect: Automatically start a sessuib when you open the flight page next time. If you want to connect manually, please uncheck this option.

Remote session started​

Once the remote session is started, you will see the following screen on the right. The remote pilot will be able to see the video stream from the drone's camera.

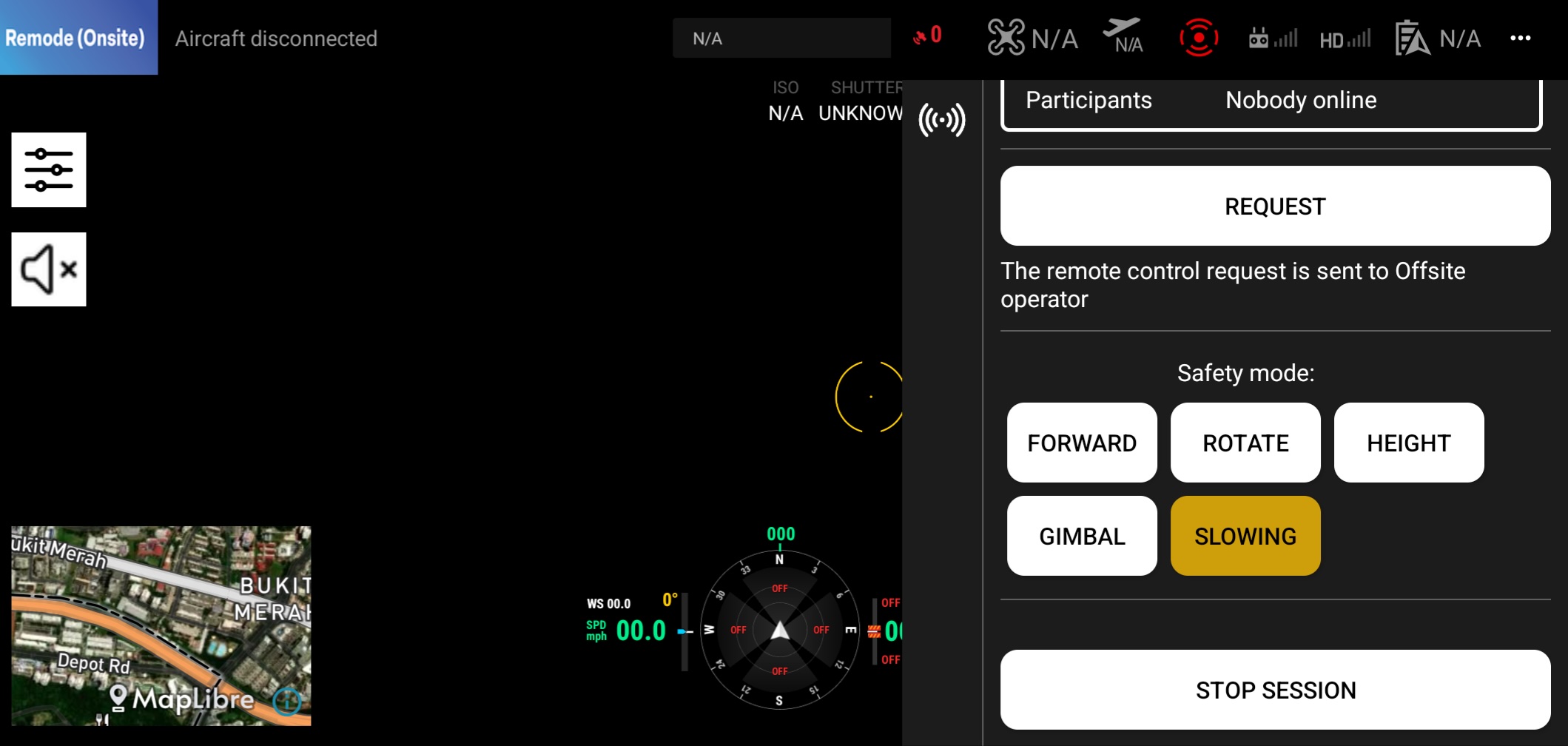

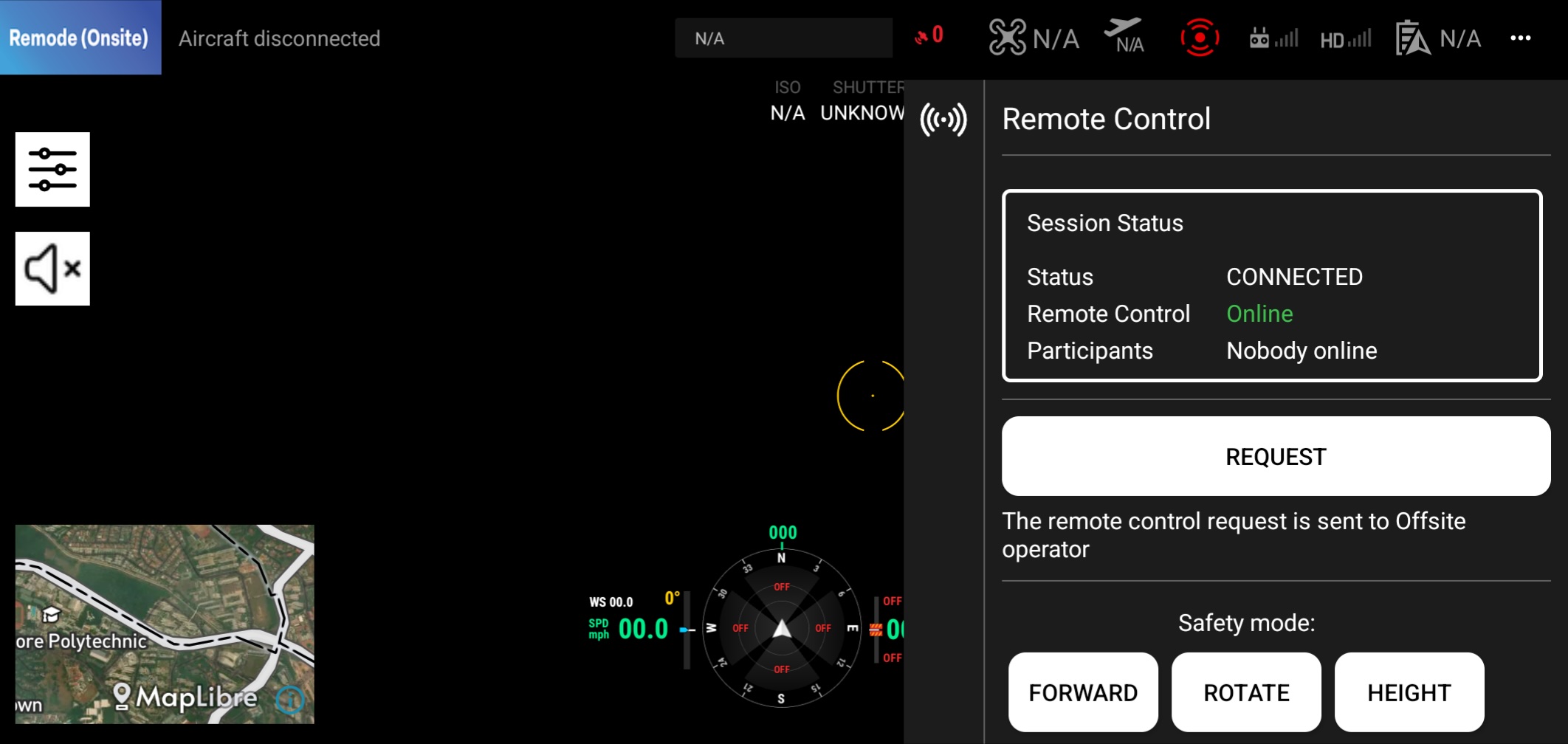

Onsite page 4 Onsite page 5

Buttons​

  • Request: This is the button to request the remote pilot to take over the control of the drone. The remote pilot will be able to see the request and accept it. This is explained in the Remote Control Request page.

  • Safety mode: This is the buttons to enable the safety mode. The safety mode will disable the remote control of the drone and the onsite operator will be able to take over the control of the drone. Please see the Safety Mode page for more information.

  • Stop Button: This is the button to stop the remote session.

Close the page​

Once you click the logo image on top-left corner of the page, you will be redirected to the menu page. The remote session will be stopped automatically.

Onsite page 6
